ACCESSORIES / OPTION
Accessories are available to extend the functionality of the testing machine.
Select according to your purpose.
Please contact us as some models may not be installed.

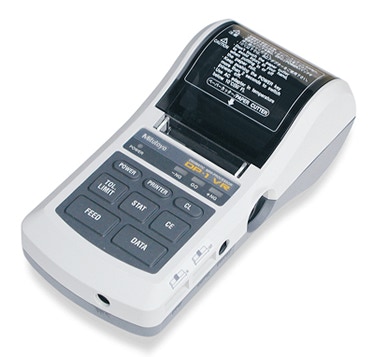

Digital printer DP-1VA
The value of "load" can be printed.
※To use this, It is necessary to install the ‘Printer output’
■Specifications
Model
Printing style
Communication
Paper
Power supply
Weight
Size
Accessories
DP-1VA
Thermal line dot
Digimatic output terminal
No.09EAA082
AC100V(DC Adapter)
Approx 390g
W94×D201×H175mm
DC adapter / Paper 1role / Cable C-201

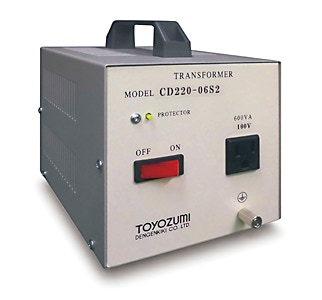

Transformer
※For overseas use, it is necessary to transform the local voltage to 100V.
Please contact us for AC200V products.
■Specifications
Model
CD110-06S
CD120-06S
CD220-06S2
CD240-06S2
CD120-10S
CD220-10S2
CD240-10S2
Input
110V
115~120V
220V
230~240V
115~120V
220V
230~240V
Output
100V
Max. current
6A
10A
Suitable appliances
Under 2kN
5kN~10kN
Weight
2.3kg
2.3kg
5.1kg
5.1kg
2.7kg
6.6kg
6.6kg

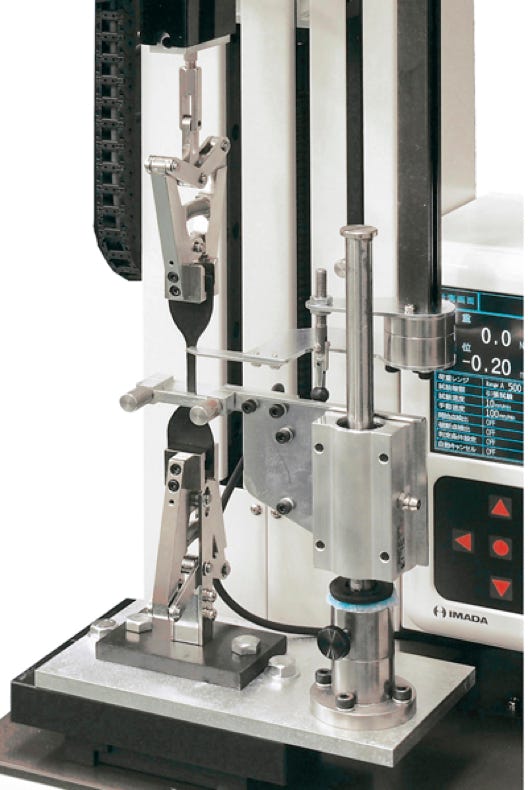

Extensometer (gauge length unit) Model GTD-1000
This is a type to use in case of a large elongation as rubber.
It is produced by quantity of stroke the testing machine type.
ex.:Mounted on a SDT-203testing mahine

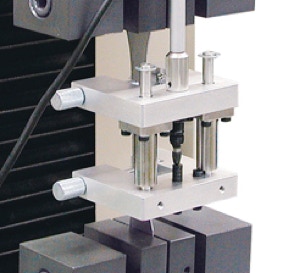

Extensometer (gauge length unit) Model GTD-50
It is clipped to test pieces such as metal or plastic, in order to measure amount of elongation precisely.
The elongation is displayed by switching on the displacement display.
■Specifications
Model
Gauge mark
Max. elongation
Resolution
Plate
Max. sample size
Pipe
Weight
GTD-50
50mm
10mm
0.001mm
13mm
φ15mm
Approx 400g
Protection cover
There are dangerous tests if the sample is destroyed.
Various protective covers are optional.

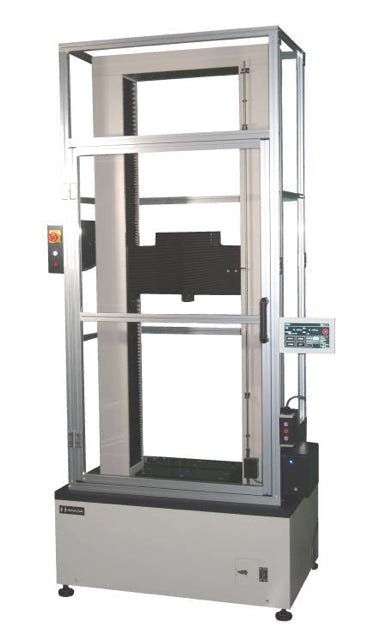

General model for desk testing machine
The whole of the moving part is covered.
When a window is not closed, there is the safety device which cannot perform movement of the testing machine.

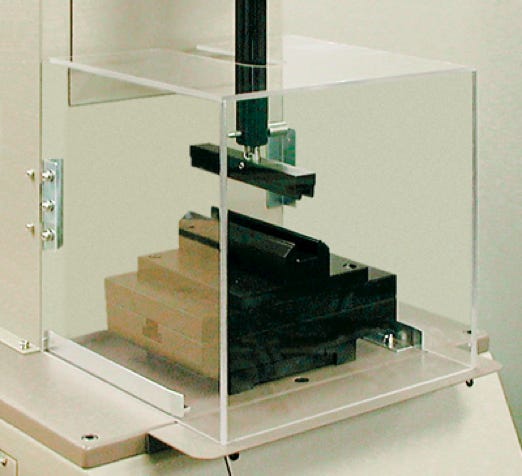

Simple model
It is minimum required cover.

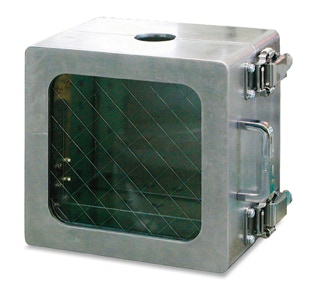

For fire prevention protection
When it might catch fire by the compression test such as the lithium ion battery.
