Compression Test

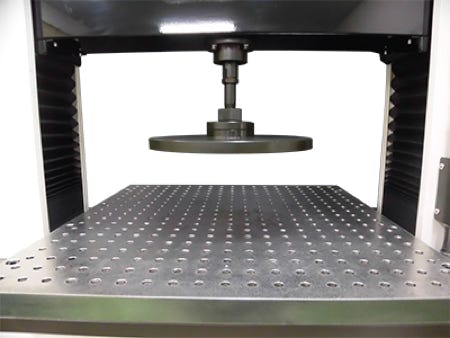

Urethane foam jig

Urethane foam compression test jig

Special compression

This is designed for test during which unbalanced load arises and equips a supporting guide.

Special compression

This hemisphere jig is to pressurize for special compression test.

Compression jig with cushioning spring

This compression jig is designed to avoid a collision by test with high-speed.

Heat sealed compression

In accordance with 'JIS Z 0238'.

This jig with acrylic thick plate is to give pressure on the sealed soft packing bags during compression tests.

The dimension of the plates is decided following to the size of the bag.

Compression jig with displacement meter

It is structure to do a direct reading of quantity of distortion of the test piece except the flexions such as loadcells.

The linear sensor is arranged in the lower part.

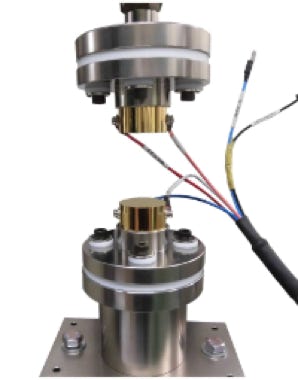

Compression jig for resistance measurement

It is a jig for evaluating lithium batteries compression.

Measurement by the resistance meter connected from the different place is possible.
