SDT-204F

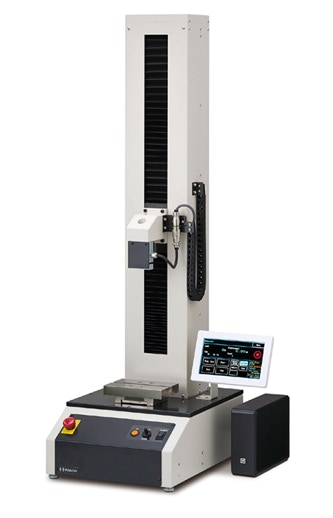

SDT-204F type is the tension and compression testing machine, which enables various kinds of testing up to 2kN maximum load. This type is suitable for testing which requires a comparative long stroke.

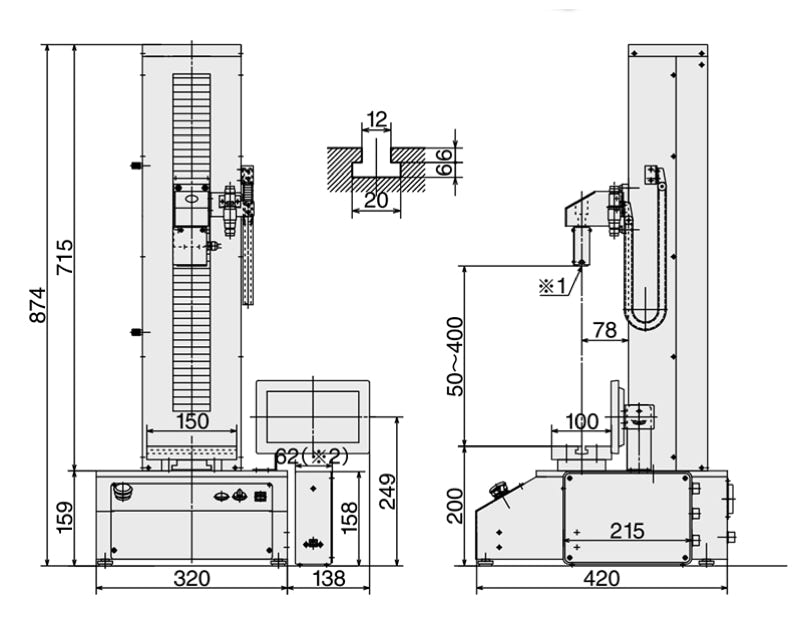

SDT-204FS type UNIVERSAL TESTING MACHINE

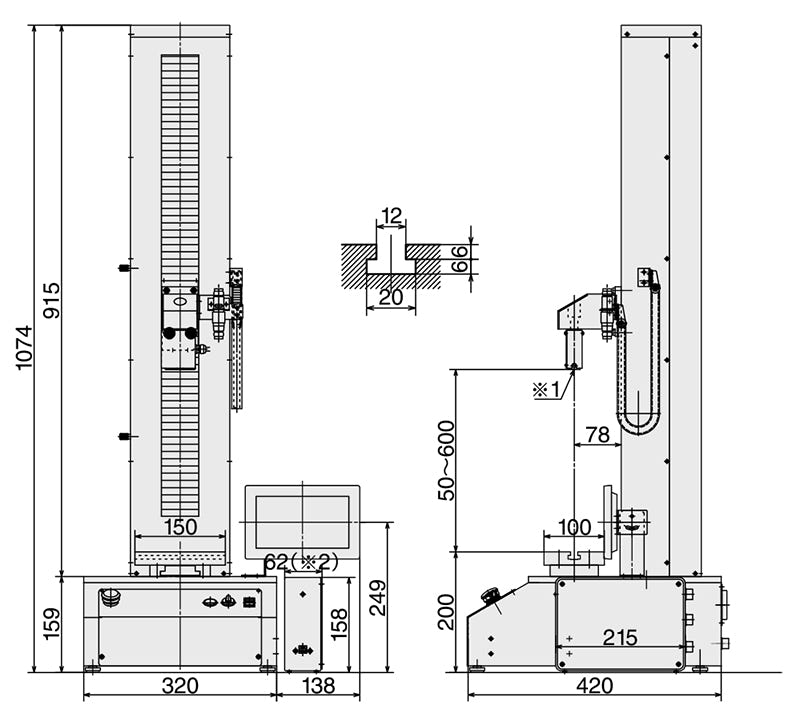

SDT-204FM type UNIVERSAL TESTING MACHINE
※ 1 Mounting screw size of the loadcell depend on the maximum load. Under 500N : M6P1 Male /1kN or more : M12P1.75 Female.
※ 2 For options and custom orders, Model SL-6003 measurement amplifier is ’Type B’ with the width of 88mm.
※ 3 Please contact us for ‘Model SDT 204FL’.
■Characteristics
◎There has three types of stroke specifications.
■Usage example
◎Pulling tests of well-stretchy samples as rubber.
◎Test with large stroke such as peeling tests.
■Accessories / option
◎Output of ANALOG
Option to output load and displacement values at 10V/FS for connection to analog equipment.
◎Software
◎Extensometer (gauge length unit) Model GTD-1000
◎Protection cover
◎Digital Printer
◎Transformer
■Standard specification
■Combination of Load Range according to the model
Model(※1)
Maximum load
Minmum Unit
Load Display
Load Precision
Displacement
Minimum Unit
Drive type
Speed Range
Distance from the Table
to Loadcell(※2)
Distance of Sample to Columu
Table Size
Safety Device
Basic Function
Output(※3)
Power supply
Weight
Size
SDT-204FS-□
SDT-204FM-□
SDT-204FL-□
2kN
[Combination of Load Range according to the madle]/
[Specification of Load range] Reference
JIS1 calss(indication value ± 1% range)
0.01mm
Brush-less Motor
5〜500mm/min
Max.400mm
Max.600mm
Max.850mm
110mm
78mm
150×100mm (With T-groove)
Optional setting Upper and lower Limit
Over-load prevention funcion
Memory function of the test conditions
Peak Hold function
Cycle mode function
Detect function of Break point
Detect function of Start Point
Auto Feed function
Auto Start point Retun function
Judgment function
USB
AC100V 5A
Approx.48kg
Approx.51kg
Approx.56kg
W458×D420×H874mm
W458×D420×H1074mm
W425×D420×H1324mm
Model
SDT-204F□-200R1
SDT-204F□-200R2
SDT-204F□-200R3
SDT-204F□-100R1
SDT-204F□-100R2
SDT-204F□-100R3
SDT-204F□-50R1
SDT-204F□-50R2
SDT-204F□-50R3
SDT-204F□-20R1
SDT-204F□-20R2
SDT-204F□-20R3
Usable Range
400N〜2kN
100N〜2kN
20N〜2kN
200N〜1kN
40N〜1kN
10N〜1kN
100N〜500N
20N〜500N
4N〜500N
40N〜200N
10N〜200N
2N〜200N
2kN
●
●
●
-
-
-
-
-
-
-
-
-
1kN
-
-
-
●
●
●
-
-
-
-
-
-
500N
-
●
●
-
-
-
●
●
●
-
-
-
Setting Load Range
200N
-
-
-
-
●
●
-
-
-
●
●
●
100N
-
-
●
-
-
-
-
●
●
-
-
-
50N
-
-
-
-
-
●
-
-
-
-
●
●
20N
-
-
-
-
-
-
-
-
●
-
-
-
10N
-
-
-
-
-
-
-
-
-
-
-
●
■Specifications of Load Range
Load Range
2kN
1kN
500N
200N
100N
50N
20N
Maximum Load Display
2000N
1000.0N
500.0N
200.0N
100.00N
50.00N
20.00N
Minimum Unit
1N
0.1N
0.01N
※1 The model symbol is put in □. Refer to [Combination of Load Range according to the model].
※2 An effective stroke is decided by selection of attachments.
※3 Analog output and Printer output can be installed with option.
※1 The usable range is recommended at 20~100% of each setting Load Range.
※2 It is possible as an option to add Load Range other than tha above listed.
