SVZ-201F

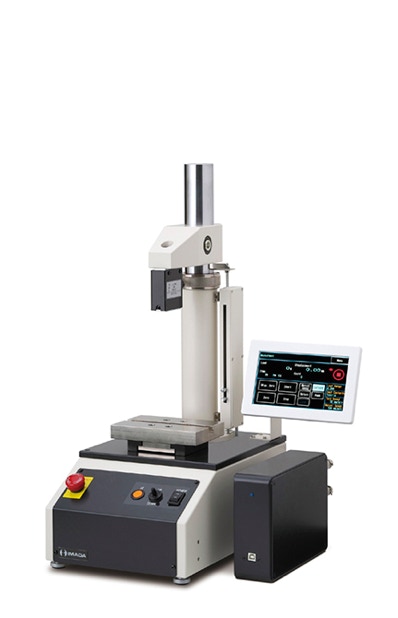

The SVZ-201F type is the electric universal testing machine that can measure various loads up to maximum load of 2kN.
It is a compact size and medium capacity testing machine with improved drive efficiency.

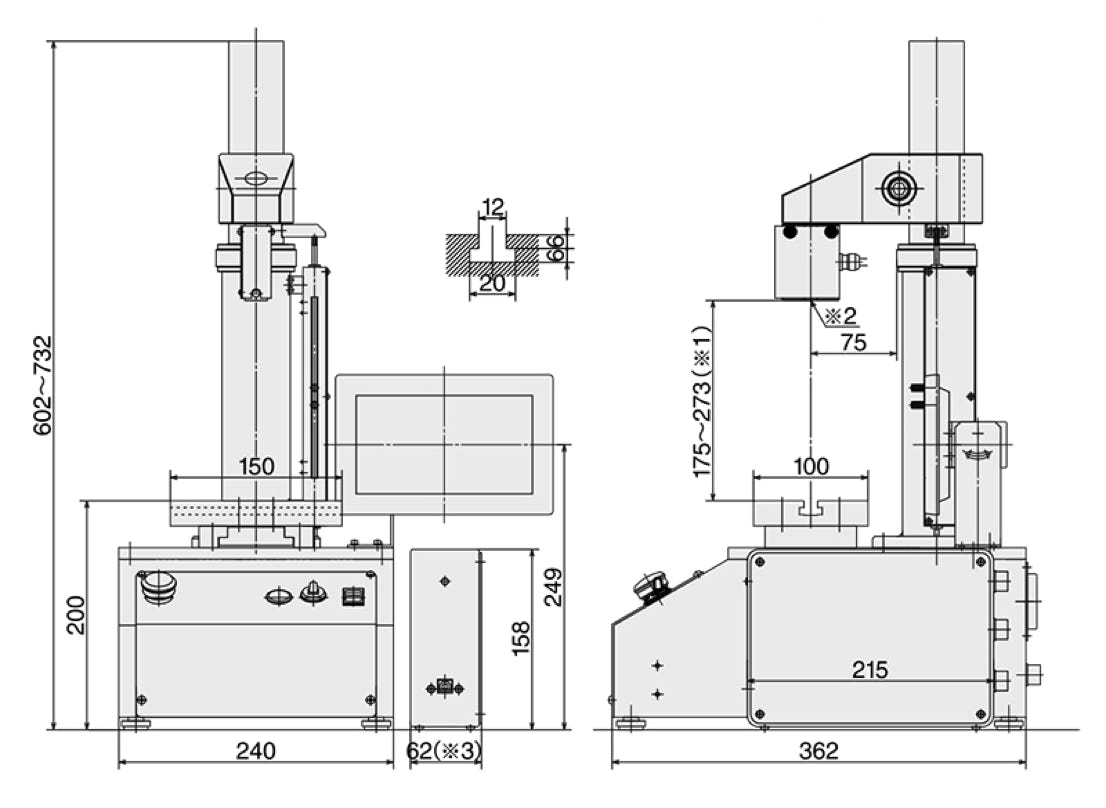

※1 ‘Sample mounting span’ is the distance between the loadcell and mounting table when the loadcell-head is placed at
the highest position on the axis.
※2 Mounting screw size of the loadcell depend on the maximum load.
Under 500N : M6P1 Male /1kN or more : M12P1.75 Female.
※3 For options and custom orders, Model SL-6003 measurement amplifier is ’Type B’ with the width of 88mm.
■Characteristics
◎it is force middle class. The operation is easy due to in the single column UP / DOWN axis.
◎The drive type of the ball screw by single axis.
■Usage example
◎Material tests of middle load.
◎Various kinds of evaluation tests of machine parts and the products.
■Accessories / option
◎Output of ANALOG
Option to output load and displacement values at 10V/FS for connection to analog equipment.
◎Special speed
◎Software
◎Protection cover
◎Digital Printer
◎Transformer
■Standard specification
■Combination of Load Range according to the model
Model
Maximum load
Minmum Unit
Load Display
Load Precision
Displacement Minimum Unit
Drive type
Speed Range
Stroke
Sample Mounting Span
Distance of Sample to Columu
Table size
Safety Device
Basic Function
Output(※2)
Power supply
Weight
Size(※3)
SVZ-201F□(※1)
2kN
[Combination of Load Range according to the madle]/
[Specification of Load range] Reference
JIS1 calss(indication value ± 1% range)
0.01mm
Brush-less Motor
5〜500mm/min
130mm
175〜273mm
75mm
150×100mm (With T-groove)
Optional setting Upper and lower Limit
Over-load prevention funcion
Memory function of the test conditions
Peak Hold function
Cycle mode function
Detect function of Break point
Detect function of Start Point
Auto Feed function
Auto Start point Retun function
Judgment function
USB
AC100V 5A
Approx.29kg
W380×D362×H602mm
Model
SVZ-201F-200R1
SVZ-201F-200R2
SVZ-201F-200R3
SVZ-201F-100R1
SVZ-201F-100R2
SVZ-201F-100R3
SVZ-201F-50R1
SVZ-201F-50R2
SVZ-201F-50R3
SVZ-201F-20R1
SVZ-201F-20R2
SVZ-201F-20R3
Usable Range
400N〜2kN
100N〜2kN
20N〜2kN
200N〜1kN
40N〜1kN
10N〜1kN
100N〜500N
20N〜500N
4N〜500N
40N〜200N
10N〜200N
2N〜200N
2kN
●
●
●
-
-
-
-
-
-
-
-
-
1kN
-
-
-
●
●
●
-
-
-
-
-
-
500N
-
●
●
-
-
-
●
●
●
-
-
-
Setting Load Range
200N
-
-
-
-
●
●
-
-
-
●
●
●
100N
-
-
●
-
-
-
-
●
●
-
-
-
50N
-
-
-
-
-
●
-
-
-
-
●
●
20N
-
-
-
-
-
-
-
-
●
-
-
-
10N
-
-
-
-
-
-
-
-
-
-
-
●
■Specifications of Load Range
Load Range
2kN
1kN
500N
200N
100N
50N
20N
10N
Maximum Load Display
2000N
1000.0N
500.0N
200.0N
100.00N
50.00N
20.00N
10.000N
Minimum Unit
1N
0.1N
0.01N
0.001N
※1 The model symbol is put in □. Refer to [Combination of Load Range according to the model].
※2 Analog output and Printer output can be installed with option.
※3 This listed “Hight” is measured with the UP/DOWN axis at the lower limit.
※1 The usable range is recommended at 20~100% of each setting Load Range.
※2 It is possible as an option to add Load Range other than tha above listed.
