SV-55CB

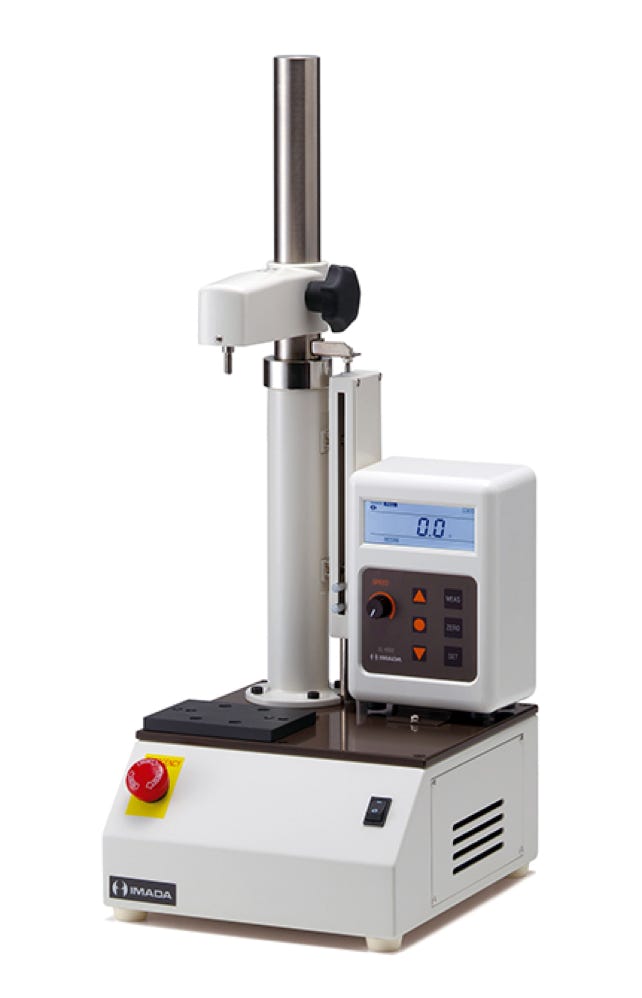

SV-55BC is an electrically operated desktop type tensile testing machine.
The value of load is measured by loadcell. Maximum load for this type (model) is 500N.
■Characteristics
■Usage example
◎Compared to combinations of Digital Force Gauge and Stand,this testing machine is
inexpensive, and it can be measured with simple operation.
◎However, it has the functions according to the UTM such as overload protection and
software.
This testing machine is about 30% smaller and lighter than the previous model.
So, do not have to worry about that place.
◎It can prepare loadcell from 20N to 500N.
Therefore, you can choose the one suitable for what you want to measure.
In addition, if the 2 range specification type, it will be expanded the measurement range.
◎Peeling tests of the adhesion and the heat seal.
◎Tensile tests of solderless terminal.
◎Various kinds of test such as foods or medical supplies.
■Options
◎Long Axis /150mm longer axis than the standard.
◎Special Speed type (5～120mm/min)
◎Printer Output (for Digimatic Printer) *2
◎Date Processing Software 'Facirec'
■Combination of Load Range according to the model
■Standard Specifications
Model
SV-55CB-□(※1)
Setting Load Range
Model
Usable Range
500N
200N
100N
50N
20N
10N
5N
Maximum Load
500N
●
-
-
-
-
-
-
SV-55CB-50R1
100N〜500N
Load Display
[Specifications of Load Range]/
●
-
●
-
-
-
-
SV-55CB-50R2
20N〜500N
Load Precision
[Combination of Load Range According to the Model] Reference
-
●
-
-
-
-
-
DC Brushless Motor
SV-55CB-20R1
40N〜200N
Drive Type
●
-
-
-
-
●
-
15〜400mm/min
SV-55CB-20R2
10N〜200N
Speed Range
-
-
-
●
-
-
-
130mm
Stroke
SV-55CB-5R1
10N〜50N
-
-
-
●
-
●
-
Sample Mounting Span
2N〜50N
227〜376mm
SV-55CB-5R2
-
-
-
-
●
-
-
Displacement to Column
85mm
SV-55CB-2R1
4N〜20N
-
-
-
-
●
-
●

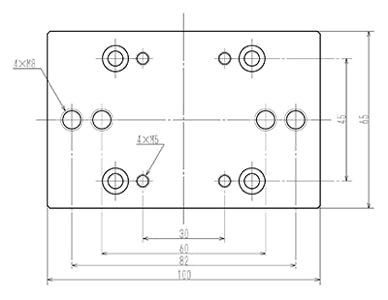

100×65mm(4 point-M8)
Table Size
SV-55CB-2R2
1N〜20N
Optional Setting Upper and Lower Limit
Safety Device
■Specifications of Load Range
Overload Prevention Function
Load Range
Maximum Load Display
Minimum Unit
Peak Hold Function
500N
500.0N
Forwarding Function
0.1N
Basic Function
200N
200.0N
Auto Start Point Return Function
100N
99.99N
Judgment Function
50N
50.00N
0.01N
Output
USB(For Measure software) / For Printer(※2)
20N
20.00N
Power Supply
AC100V〜240V 3A
10N
9.999N
Approx 12kgk
Weight
0.001N
5N
5.000N
Size

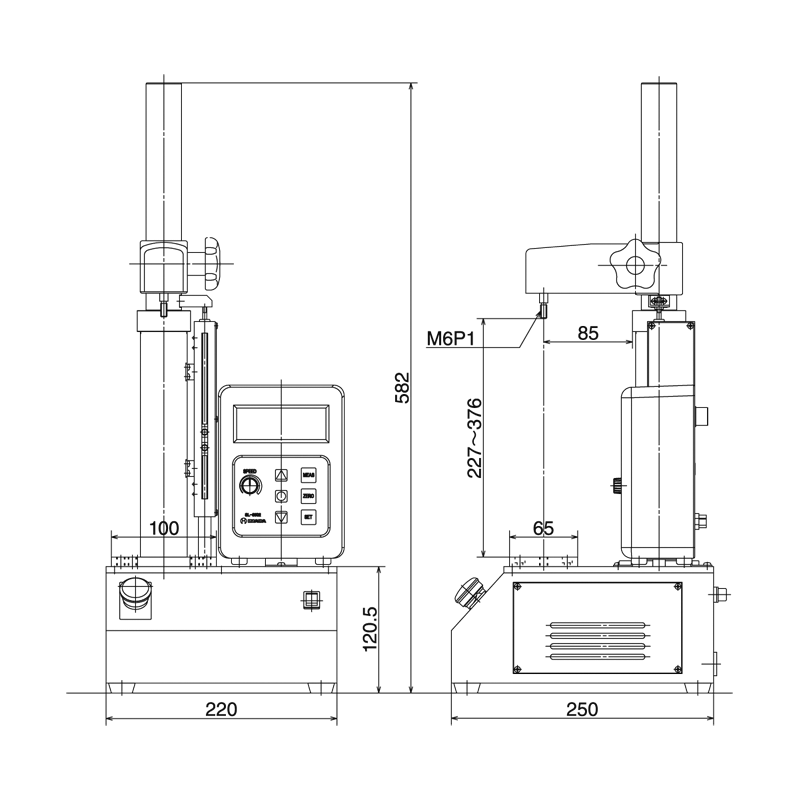

W220×D250×H582mm(※3)
※1 The usable range is recommended at 20~100% of each setting Load Range.
※1The model symbol is put in □. Refer to [Combination of Load Range According to the Model]
※2 Digimatic printer output can be installed with additional option.
※3 The listed 'height' is measured with lower condition of 'UP/DOWN axis'.
