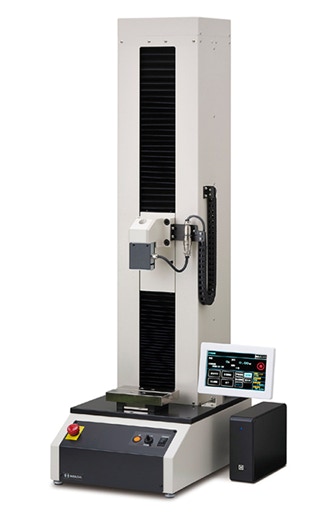

SDT-504F
It is tension and compression testing machine with the maximum load capacity as the desk model with single column.

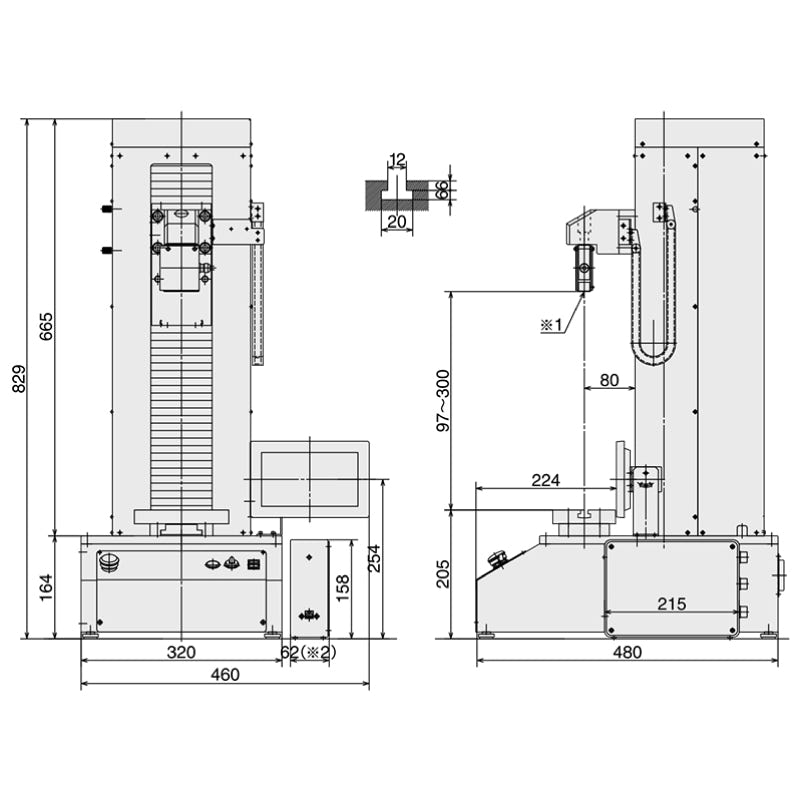

SDT-504FS type UNIVERSAL TESTING MACHINE

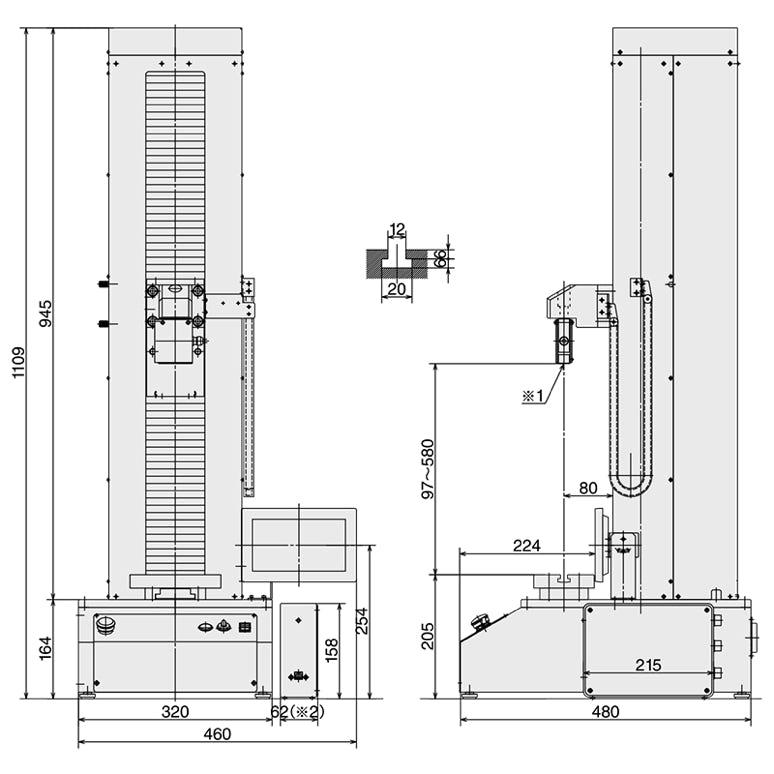

SDT504FL type UNIVERSAL TESTING MACHINE
※ 1 Mounting screw size of the loadcell depend on the maximum load. Under 500N : M6P1 Male /1kN or more : M12P1.75 Female.
※ 2 For options and custom orders, Model SL-6003 measurement amplifier is ’Type B’ with the width of 88mm.
■Characteristics
◎This is suitable for the long stroke tests.
◎There has two types of stroke specifications.
■Usage example
◎Various material tests of the middle load.
◎The evaluation tests of the small machine parts.
■Accessories / option
◎Output of ANALOG
Option to output load and displacement values at 10V/FS for connection to analog equipment.
◎Software
◎Extensometer (gauge length unit) Model GTD-50
◎Protection cover
◎Digital Printer
◎Transformer
■Standard specification
■Combination of Load Range according to the model
Model(※1)
Maximum load
Minmum Unit
Load Display
Load Precision
Displacement
Minimum Unit
Drive type
Speed Range
Distance of Sample to Columu
Table Size
Safety Device
Basic Function
Output(※3)
Power supply
Weight
Size
Distance from the Table
to Loadcell(※2)
SDT-504FS-□
SDT-504FL-□
5kN
[Combination of Load Range according to the madle]/
[Specification of Load range] Reference
JIS1 calss(indication value ± 1% range)
0.01mm
AC Servo Motor
0.1〜500mm/min
Max.300mm
Max.580mm
80mm
150×100mm(With T-groove)
Optional setting Upper and lower Limit
Over-load prevention funcion
Memory function of the test conditions
Peak Hold function
Cycle mode function
Detect function of Break point
Detect function of Start Point
Auto Feed function
Auto Start point Retun function
Judgment function
USB
AC100V 7A
Approx.67kg
Approx.74kg
W460×D480×H829mm
W460×D480×H1109mm
Model
SDT-504F□-R1
SDT-504F□-R2
SDT-504F□-R3
Usable Range
1kN〜5kN
200N〜5kN
40N〜5kN
5kN
●
●
●
Setting Load Range
1kN
-
●
●
200N
-
-
●
■Specifications of Load Range
Load Range
5kN
1kN
200N
Maximum Load Display
5000N
1000.0N
200.0N
Minimum Unit
1N
0.1N
※1 The usable range is recommended at 20~100% of each setting Load Range.
※2 It is possible as an option to add Load Range other than tha above listed.
※1 The model symbol is put in □. Refer to [Combination of Load Range according to the model].
※2 An effective stroke is decided by selection of attachments.
※3 Analog output and Printer output can be installed with option.
