SH-14F

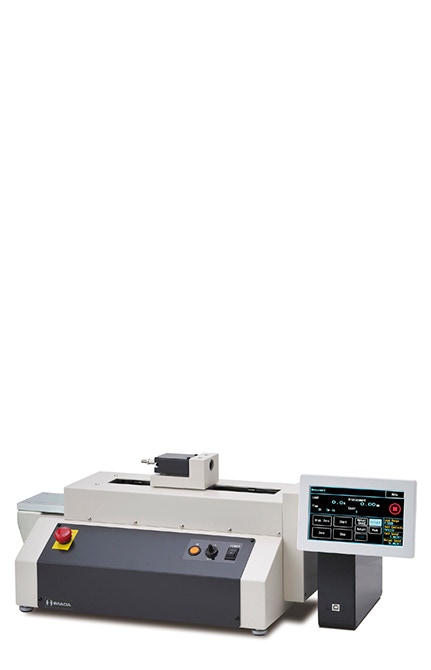

SH-14F type is the horizontal and desktop type testing machine,which allows measuring up to 500N maximum load.

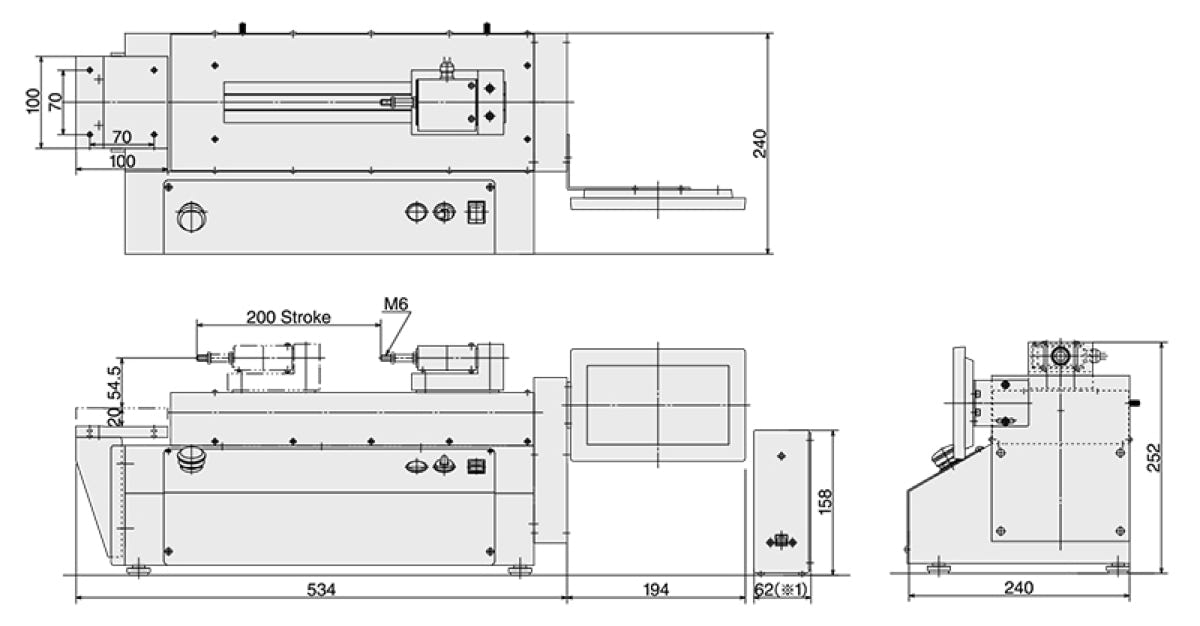

※Click the drawing to download it.
※1 For options and custom orders, Model SL-6003 measurement amplifier is ‘Type-B’ with the width of 88mm.
■Characteristics
◎It is horizontal testing machine and can be placed on the desk in compact size.
■Usage example
◎Peeling test of semiconductor.
◎Frictional force tests.
※When the jig is attached, it will be vertical to the loadcell. Therefore, a moment force is generated.
■Accessories / option
◎Output of ANALOG
Option to output load and displacement values at 10V/FS for connection to analog equipment.
◎Software
◎Digital Printer
◎Transformer
■Standard specification
■Combination of Load Range according to the model
Model
Maximum load
Minmum Unit
Load Display
Load Precision
Displacement Minimum Unit
Drive type
Speed Range
Stroke
Table size
Safety Device
Basic Function
Output(※2)
Power supply
Weight
Size
SH-14F□(※1)
500N
[Combination of Load Range according to the madle]/
[Specification of Load range] Reference
JIS1 calss(indication value ± 1% range)
0.01mm
Brush-less Motor
5〜500mm/min
200mm
100×100mm
Optional setting Limit
Over-load prevention funcion
Memory function of the test conditions
Peak Hold function
Cycle mode function
Detect function of Break point
Detect function of Start Point
Auto Feed function
Auto Start point Retun function
Judgment function
USB
AC100V 5A
Approx.25kg
W728×D240×H252mm(Included of LCD)
Model
SH-14F-50R1
SH-14F-50R2
SH-14F-50R3
SH-14F-20R1
SH-14F-20R2
SH-14F-20R3
SH-14F-5R1
SH-14F-5R2
SH-14F-5R3
SH-14F-2R1
SH-14F-2R2
Usable Range
100N〜500N
20N〜500N
4N〜500N
40N〜200N
10N〜200N
2N〜200N
10N〜50N
2N〜50N
0.4N〜50N
4N〜20N
1N〜20N
500N
●
●
●
-
-
-
-
-
-
-
-
200N
-
-
-
●
●
●
-
-
-
-
-
100N
-
●
●
-
-
-
-
-
-
-
-
Setting Load Range
50N
-
-
-
-
●
●
●
●
●
-
-
20N
-
-
●
-
-
-
-
-
-
●
●
10N
-
-
-
-
-
●
-
●
●
-
-
5N
-
-
-
-
-
-
-
-
-
-
●
2N
-
-
-
-
-
-
-
-
●
-
-
■Specifications of Load Range
Load Range
500N
200N
100N
50N
20N
10N
5N
2N
Maximum Load Display
500.0N
200.0N
100.00N
50.00N
20.00N
10.000N
5.000N
2.000N
Minimum Unit
0.1N
0.01N
0.001N
※1 The modl symbol is put in □. Refer to [Combination of Load Range according to the model].
※2 Analog output and Printer output can be installed with option.
