SDW-F
Model “SDW-F” is the Universal testing machine that can measure from 2kN to 200kN. This is the gate type frame testing machine that puts a load on the test piece.
There are two type, the desktop type that can be used on the work table and the floor-standing type.
SDW-002F~020F UNIVERSAL TESTING MACHINE
SDW-050F / 100F UNIVERSAL TESTING MACHINE

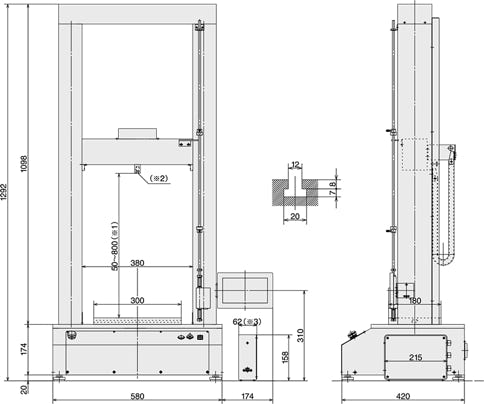

SDW-002F/005F type
UNIVERSAL TESTING MACHINE

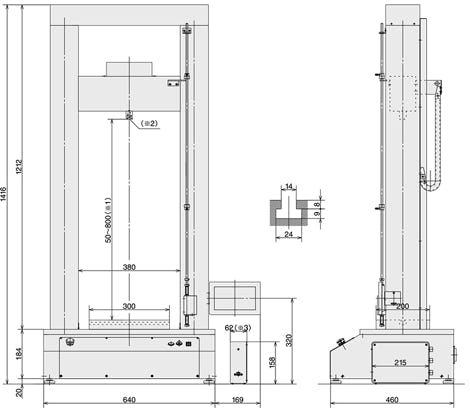

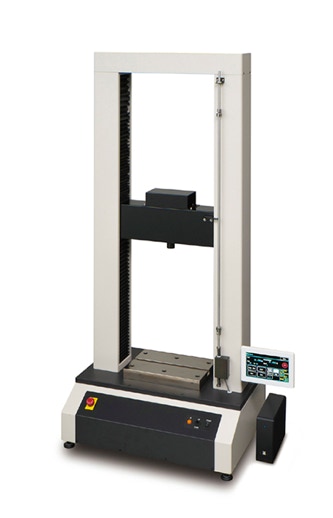

SDW-010F/020F type
UNIVERSAL TESTING MACHINE

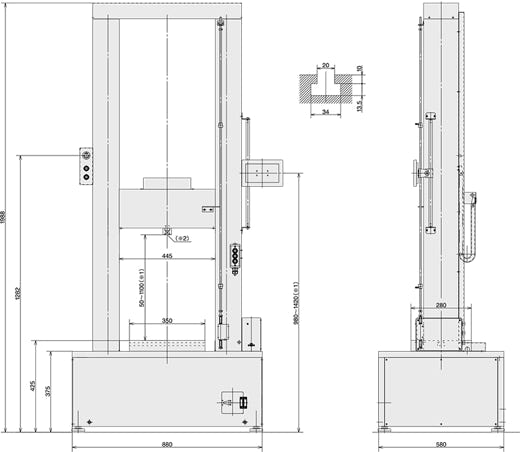

SDW-050F type
UNIVERSAL TESTING MACHINE

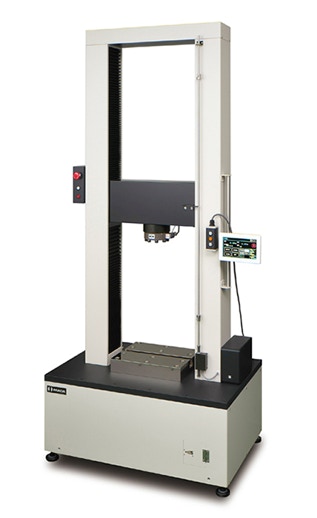

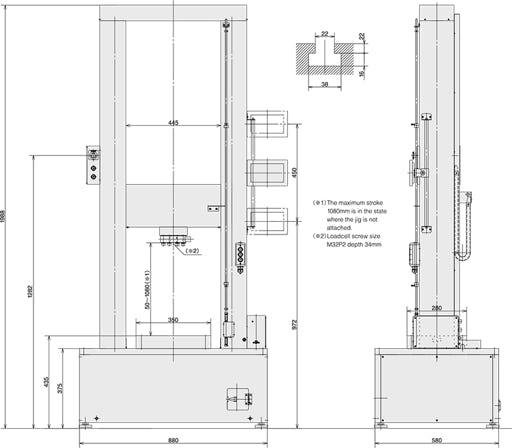

SDW-100F type
UNIVERSAL TESTING MACHINE
※ 1 The maximum stroke is in the state where the jig in not attached. (SDW-002F~020F : Max 800mm, 050F : Max 1100mm, 100F : Max 1080mm)
※ 2 Loadcell screw size SDW-002F~010F : M12P1.75, 020F : M16P1.5, 050F : M24P2, 100F : M32P2.
※ 3 For options and custom orders, Model SL-6003 measurement amplifier is ’Type B’ with the width of 88mm. (in case of Model SDW-002F~020F)
※Click the drawing to download it.
■Characteristics
◎This is a gate type frame structure that allows you to test relatively large test pieces.
◎It can be also used for the test of the small load by adding a smaller load-range.
■Usage example
◎Various material tests of the middle load.
◎Tests of relatively large samples are possibled wiht this gate type frame structure.
■Accessories / option
◎The addition of the load range.
◎Displacement resolution 1μm.
◎Output of ANALOG
Option to output load and displacement values at 10V/FS for connection to analog equipment.
◎Software
◎Digital Printer
◎Protection cover
◎Extensometer (gauge length unit) Model GTD-50 / GT-1000
◎Transformer(※SDW-050F / 100F Please contact us for overseas use.)
■Standard specification
Model(※1)
Maximum load
Minmum Unit
Load Display
Load Precision
Displacement
Minimum Unit
Drive type
Maximum speed(※2)
Test speed range
Distance of Sample to Columu(※3)
Effective Test Width
Table Size
Safety Device
Basic Function
Output(※4)
Installation type
Power supply
Weight
Size
SDW-002F-□
2kN
SDW-005F-□
5kN
SDW-010F-□
10kN
SDW-020F-□
20kN
SDW-050F-□
50kN
SDW-100F-□
100kN
[Combination of Load Range according to the madle] / [Specification of Load range] Reference
JIS1 calss(indication value ± 1% range)
0.01mm
AC Servo Motor
1000mm/min
500mm/min
1000mm/min
0.05〜500mm/min
0.1〜300mm/min
0.05〜500mm/min
Max.1100mm
Max.1080mm
Max.800mm
455mm
380mm
300×180mm (With T-groove)
300×200mm (With T-groove)
350×280mm (With T-groove)
Optional setting Upper and lower Limit
Over-load prevention funcion
Memory function of the test conditions
Detect function of Break point
Cycle mode function
Detect function of Start Point
Detect function of Start Point
Auto Feed function
Auto Start point Retun function
Judgment function
USB
Desktop type
Floor-standing type
AC100V 10A
AC200V 30A 3phase
Approx.102kg
Approx.156kg
Approx.440kg
W580×D422×H1292mm
W640×D460×H1416mm
W880×D580×H1988mm
※1 The model symbol is put in □. Refer to [Combination of Load Range according to the model].
※2 Maximum speed can be used for return and manual operation. And at the time of the test, it will be used within the test speed range.
※3 An effective stroke is decided by selection of attachments.
※4 Analog output and Printer output can be installed with option.
■Combination of Load Range according to the model
Model
SDW-002F-R1
SDW-002F-R2
SDW-002F-R3
SDW-005F-R1
SDW-005F-R2
SDW-005F-R3
SDW-010F-R1
SDW-010F-R2
SDW-010F-R3
SDW-020F-R1
SDW-020F-R2
SDW-020F-R3
SDW-050F-R1
SDW-050F-R2
SDW-050F-R3
SDW-100F-R1
SDW-100F-R2
SDW-100F-R3
Usable Range
400N〜2kN
100N〜2kN
20N〜2kN
1kN〜5kN
200N〜5kN
40N〜5kN
2kN〜10kN
400N〜10kN
100N〜10kN
4kN〜20kN
1kN〜20kN
200N〜20kN
10kN〜50kN
2kN〜50kN
400N〜50kN
20kN〜100kN
4kN〜100kN
1kN〜100kN
100kN
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
●
●
●
50kN
-
-
-
-
-
-
-
-
-
-
-
-
●
●
●
-
-
-
20kN
-
-
-
-
-
-
-
-
-
●
●
●
-
-
-
-
●
●
10kN
-
-
-
-
-
-
●
●
●
-
-
-
-
●
●
-
-
-
5kN
-
-
-
●
●
●
-
-
-
-
●
●
-
-
-
-
-
●
2kN
●
●
●
-
-
-
-
●
●
-
-
-
-
-
●
-
-
-
1kN
-
-
-
-
●
●
-
-
-
-
-
●
-
-
-
-
-
-
500N
-
●
●
-
-
-
-
-
●
-
-
-
-
-
-
-
-
-
■Specifications of Load Range
Load Range
100kN
50kN
20kN
10kN
5kN
2kN
1kN
500N
200N
100N
Maximum Load Display
100.00kN
50.00kN
20.00kN
10.000kN
5000N
2000N
1000.0N
500.0N
200.0N
100.00N
Minimum Unit
0.01kN
0.001kN
1N
0.1N
0.01N
※1 The usable range is recommended at 20~100% of each setting Load Range.
※2 It is possible as an option to add Load Range other than tha above listed.
Setting Load Range
200N
-
-
-
-
-
●
-
-
-
-
-
-
-
-
-
-
-
-
100N
-
-
●
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

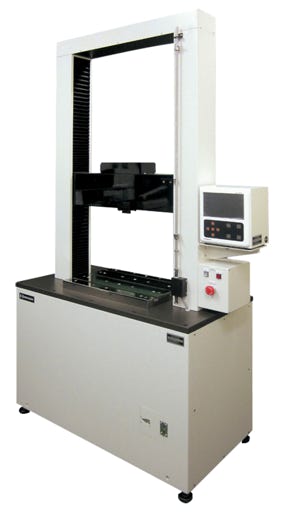

Desk type

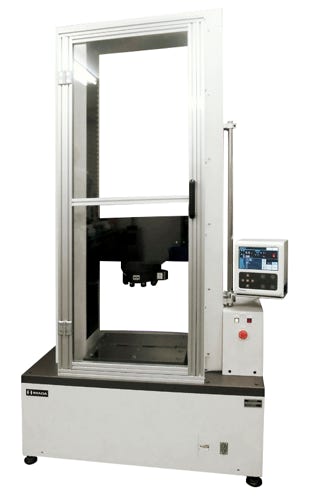

200kN Range type
■Custom order spcifications■

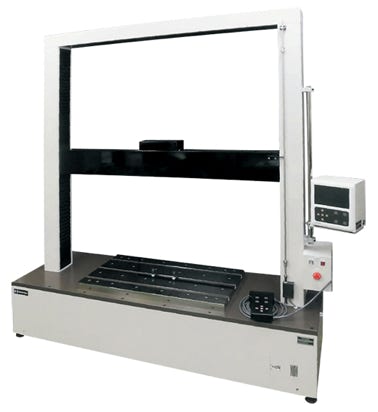

The wide type of effective test width

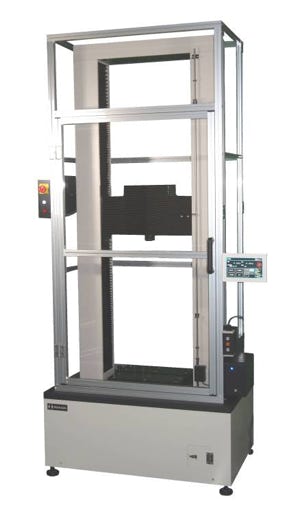

Protection cover

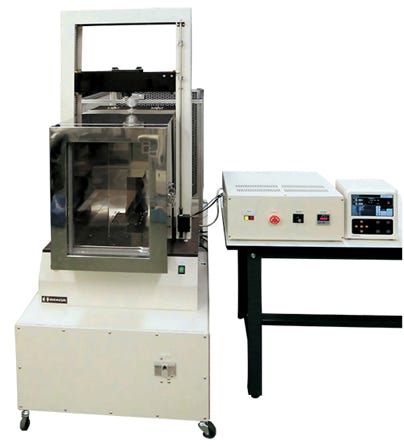

Constant-Temperature Chamber furnished
